Texas MUTCD (TMUTCD) Sign Code Index¶
An unofficial index, made by Roundabout
This Sign Code Index is not an official section of the Texas MUTCD (TMUTCD). We (Roundabout) built it as a convenience by harvesting every sign code from the manual and linking each to the section that defines it.
Every sign and plaque code (R1-1, W11-2, …) is mapped to a picture of the sign, its name, and the section that defines it. Hover a thumbnail to enlarge it, or use your browser's find (Ctrl/Cmd-F) for a code.
CW-series¶
California Regulatory (SR)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
SR1-5c | Stop Here for School Crossing | Part 3b pavement and curb markings |
|
SR1-6c | In-Street School Crossing | Part 7b signs |
|
SR1-9c | Overhead School Crossing | Part 7b signs |
California Warning (SW)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
SW16-2P | XX Feet (2-line) | Part 7b signs |
|
SW16-2aP | XX Ft (1-line) | Part 7b signs |
|
SW16-5P | Directional Arrow | Part 7b signs |
|
SW16-6P | Advance Turn Arrow | Part 7b signs |
|
SW16-7P | Downward Diagonal Arrow | Part 7b signs |
|
SW16-7aP | Dual Downward Diagonal Arrow | Part 7b signs |
|
SW16-9P | AHEAD | Part 7b signs |
Emergency Management (EM)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
EM1-1 | Evacuation Route | Part 2h 2n signs misc |
 |
EM1-2T | Evacuation Route | Part 2h 2n signs misc |
 |
EM2-1 | AREA CLOSED Sign | Part 2h 2n signs misc |
 |
EM2-2 | TRAFFIC CONTROL POINT Sign | Part 2h 2n signs misc |
 |
EM2-3 | MAINTAIN TOP SAFE SPEED Sign | Part 2h 2n signs misc |
 |
EM2-4 | Permit Required Sign | Part 2h 2n signs misc |
 |
EM3-1 | MEDICAL CENTER | Part 2h 2n signs misc |
 |
EM3-1a | WELFARE CENTER | Part 2h 2n signs misc |
 |
EM3-1b | REGISTRATION CENTER | Part 2h 2n signs misc |
 |
EM3-1c | DECONTAMINATION CENTER | Part 2h 2n signs misc |
 |
EM4-1 | EMERGENCY | Part 2h 2n signs misc |
 |
EM4-1a | HURRICANE | Part 2h 2n signs misc |
 |
EM4-1b | FALLOUT | Part 2h 2n signs misc |
 |
EM4-1c | CHEMICAL | Part 2h 2n signs misc |
Emergency/Other (E)¶
General Service (I)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
I1-1 | Traffic Signal Speed Sign | Part 2h 2n signs misc |
 |
I2-1 | Jurisdictional Boundary | Part 2h 2n signs misc |
 |
I2-1T | Jurisdictional Boundary Signs and City Limit Signs | Part 2h 2n signs misc |
 |
I2-2 | Geographical Feature Signs | Part 2h 2n signs misc |
 |
I2-3 | Grade-Separated Roadway Identification Signs | Part 2h 2n signs misc |
 |
I2-3a | Grade-Separated Roadway Identification Signs | Part 2h 2n signs misc |
 |
I2-4 | Future Interstate Corridor Signs | Part 2h 2n signs misc |
 |
I2-4a | Future Interstate Corridor Signs | Part 2h 2n signs misc |
 |
I2-5 | Project Information Sign | Part 2h 2n signs misc |
 |
I3-5 | Airport | Part 2h 2n signs misc |
 |
I3-6 | Bus Station | Part 2h 2n signs misc |
 |
I3-7 | Train Station | Part 2h 2n signs misc |
 |
I3-8 | Light Rail Transit Station Sign | Part 8b signs |
 |
I3-9 | Vehicle Ferry Terminal | Part 2h 2n signs misc |
 |
I3-10 | Passengers Only Ferry Terminal | Part 2h 2n signs misc |
 |
I3-10P | FERRY | Part 2h 2n signs misc |
 |
I4-1 | Library | Part 2h 2n signs misc |
 |
I4-2 | Recycling Center | Part 2h 2n signs misc |
 |
I13-1 | Emergency Notification System Sign | Part 8b signs |
 |
I13-2 | PUSH TO EXIT | Part 8e pathway and sidewalk grade crossings |
 |

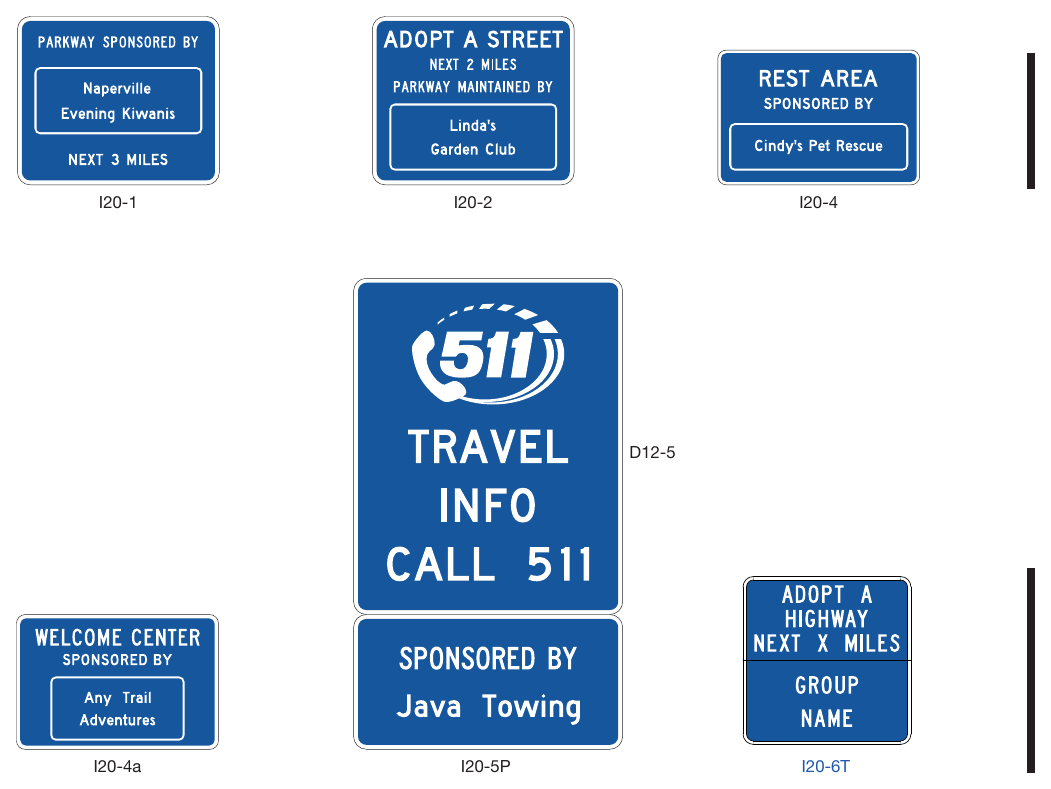

I20-1 | Acknowledgment | Part 2h 2n signs misc |
 |
I20-2 | Acknowledgment | Part 2h 2n signs misc |
 |

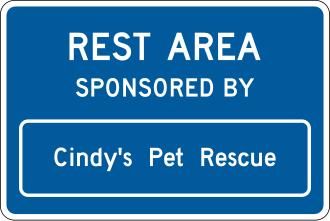

I20-4 | Acknowledgment - Rest Area | Part 2h 2n signs misc |
 |
I20-4a | Acknowledgment - Welcome Center | Part 2h 2n signs misc |
 |
I20-5P | Acknowledgment (plaque) | Part 2h 2n signs misc |
 |
I20-6T | Adopt A Highway | Part 2h 2n signs misc |
Guide & Destination (D)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
D1-1 | Destination (1 line) | Part 2d guide signs conventional |
 |
D1-1d | Circular Intersection Destination (1 line) | Part 2d guide signs conventional |
 |
D1-1e | Circular Intersection Departure Guide | Part 2d guide signs conventional |
 |
D1-1a | Destination (1 line) | Part 9d guide and service signs |
 |
D1-1b | Bicycle Destination (1 line) | Part 9d guide and service signs |
 |
D1-1c | Bicycle Destination (1 line) | Part 9d guide and service signs |
 |
D1-2 | Destination (2 lines) | Part 2d guide signs conventional |
 |
D1-2d | Circular Intersection Destination (2 lines) | Part 2d guide signs conventional |
 |
D1-2a | Destination (2 lines) | Part 9d guide and service signs |
 |
D1-2b | Bicycle Destination (2 lines) | Part 9d guide and service signs |
 |
D1-2c | Bicycle Destination (2 lines) | Part 9d guide and service signs |
 |
D1-3 | Destination (3 lines) | Part 2d guide signs conventional |
 |
D1-3d | Circular Intersection Destination (3 lines) | Part 2d guide signs conventional |
 |
D1-3a | Destination (3 lines) | Part 9d guide and service signs |
 |
D1-3b | Bicycle Destination (3 lines) | Part 9d guide and service signs |
 |

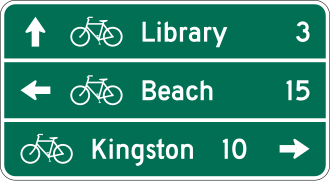

D1-3c | Bicycle Destination (3 lines) | Part 9d guide and service signs |
 |
D1-5 | Circular Intersection Diagrammatic Destination | Part 2d guide signs conventional |
 |
D1-5a | Circular Intersection Diagrammatic Destination, Right-Turn Bypass | Part 2d guide signs conventional |
 |
D2-1 | Distance (1 line) | Part 2d guide signs conventional |
 |
D2-1a | Bike Route Destination and Distance (1 Line) | Part 9d guide and service signs |
 |
D2-2 | Distance (2 lines) | Part 2d guide signs conventional |
 |
D2-2a | Bike Route Destination and Distance (2 Lines) | Part 9d guide and service signs |
 |
D2-3 | Distance (3 lines) | Part 2d guide signs conventional |
 |
D2-3a | Bike Route Destination and Distance (3 Lines) | Part 9d guide and service signs |
 |
D3-1 | Street Name | Part 2c warning signs |
 |
D3-1a | Street Name Signs | Part 2d guide signs conventional |
 |
D3-2 | Advance Street Name | Part 2d guide signs conventional |
 |
D4-1 | Parking Area Guide Sign | Part 2d guide signs conventional |
 |
D4-2 | PARK - RIDE Sign | Part 2d guide signs conventional |
 |
D4-3 | Bicycle Parking Area | Part 9d guide and service signs |
 |
D4-4 | Bicycle-Sharing Station | Part 9d guide and service signs |
 |
D4-4a | Bicycle Lockers | Part 9d guide and service signs |
 |
D5-1 | Rest Area Advance | Part 2h 2n signs misc |
 |

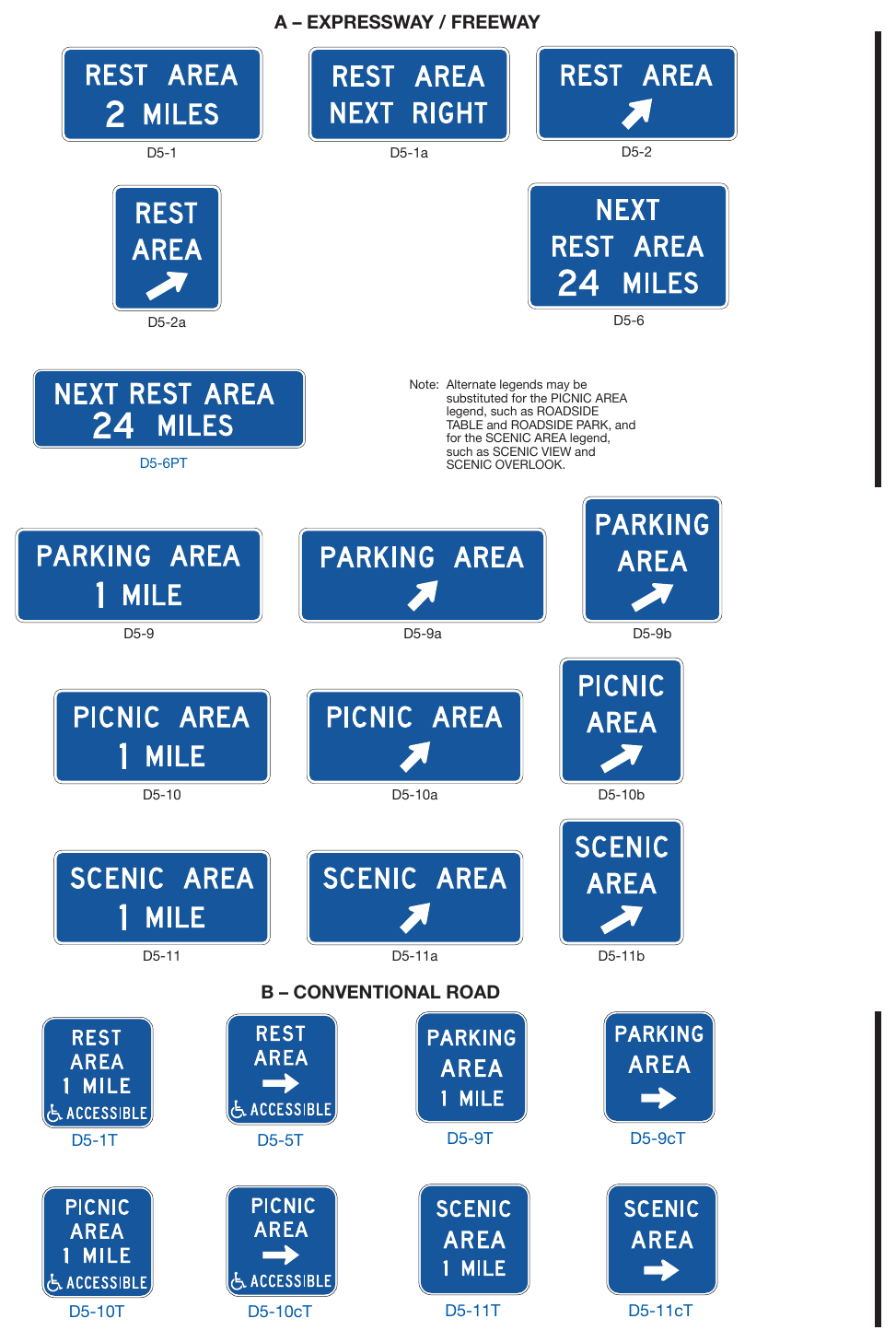

D5-1T | Rest Area 1 Mile Accessible | Part 2h 2n signs misc |
 |
D5-1a | Rest Area Advance Direction | Part 2h 2n signs misc |
 |
D5-2a | size of the Rest Area Gore | appendices |
 |
D5-2 | Rest Area Entrance Direction | Part 2h 2n signs misc |
|
D5-5T | Rest Area Directional Accessible | Part 2h 2n signs misc |
 |
D5-6 | Next Rest Area | Part 2h 2n signs misc |
| D5-6PT | Next Rest Area (plaque) | Part 2h 2n signs misc | |
 |
D5-7 | Rest Area Tourist Info Center Advance | Part 2h 2n signs misc |
 |
D5-7T | Rest Area Texas Travel Info Center Advance | Part 2h 2n signs misc |
 |
D5-7a | Rest Area Tourist Info Center Advance Direction | Part 2h 2n signs misc |
| D5-7aT | Rest Area Texas Travel Info Center Advance Direction | Part 2h 2n signs misc | |
 |
D5-8 | Rest Area Tourist Info Center Entrance Direction | Part 2h 2n signs misc |
|
D5-8T | Rest Area Texas Travel Info Center Entrance Direction | Part 2h 2n signs misc |
 |
D5-9b | size of the Parking Area Gore | appendices |
 |
D5-9 | Parking Area Advance | Part 2h 2n signs misc |
|
D5-9T | Parking Area 1 Mile | Part 2h 2n signs misc |
 |
D5-9a | Parking Area Entrance Direction | Part 2h 2n signs misc |
| D5-9cT | Parking Area Directional | Part 2h 2n signs misc | |
 |
D5-10b | size of the Picnic Area Gore | appendices |
 |
D5-10 | Picnic Area (Roadside Table, Roadside Park) Advance | Part 2h 2n signs misc |
|
D5-10T | Picnic Area 1 Mile | Part 2h 2n signs misc |
 |
D5-10a | Picnic Area (Roadside Table, Roadside Park) Entrance Direction | Part 2h 2n signs misc |
| D5-10cT | Picnic Area Directional | Part 2h 2n signs misc | |
 |
D5-11b | size of the Scenic Area Gore | appendices |
 |
D5-11 | Scenic Area (Scenic View, Scenic Overlook) Advance | Part 2h 2n signs misc |
|
D5-11T | Scenic Area 1 Mile | Part 2h 2n signs misc |
 |
D5-11a | Scenic Area (Scenic View, Scenic Overlook) Entrance Direction | Part 2h 2n signs misc |
| D5-11cT | Scenic Area Directional | Part 2h 2n signs misc | |
 |
D8-1 | Weigh Station Advance | appendices |
 |
D8-1a | Weigh Station Advance | appendices |
 |
D8-1T | CMV Inspection Station 1 Mile | Part 2d guide signs conventional |
| D8-1aT | CMV Inspection Station 1/2 Mile | Part 2d guide signs conventional | |
| D8-1bT | CMV Inspection Station (with arrow) | Part 2d guide signs conventional | |
| D8-2T | Inspection Station 1 Mile | Part 2d guide signs conventional | |
| D8-2aT | Inspection Station 1/2 Mile | Part 2d guide signs conventional | |
 |
D9-1 | Telephone | Part 2h 2n signs misc |
 |
D9-2 | Hospital | Part 2h 2n signs misc |
 |
D9-3 | Camping | Part 2h 2n signs misc |
 |
D9-4 | Litter Container | Part 2h 2n signs misc |
 |
D9-6 | Accessibility | Part 2h 2n signs misc |
 |
D9-6P | VAN ACCESSIBLE | Part 2h 2n signs misc |
 |
D9-7 | Gas | Part 2h 2n signs misc |
 |
D9-8 | Food | Part 2h 2n signs misc |
 |
D9-9 | Lodging | Part 2h 2n signs misc |
 |
D9-10 | Tourist Information | Part 2h 2n signs misc |
 |
D9-11 | Diesel Fuel | Part 2h 2n signs misc |
 |
D9-11e | LP-GAS | Part 2h 2n signs misc |
 |

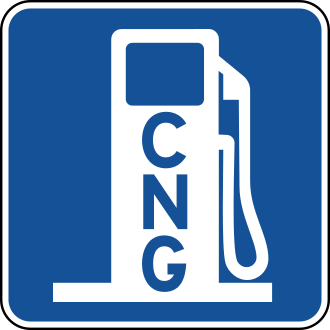

D9-11a | Alternative Fuel - Compressed Natural Gas | Part 2h 2n signs misc |
 |
D9-11b | Electric Vehicle Charging | Part 2h 2n signs misc |
 |
D9-11bP | Electric Vehicle Charging (plaque) | Part 2h 2n signs misc |
 |
D9-11c | Alternative Fuel - Ethanol | Part 2h 2n signs misc |
 |
D9-11d | Alternative Fuel - Liquefied Natural Gas | Part 2h 2n signs misc |
 |
D9-11f | Alternative Fuel - Hydrogen | Part 2h 2n signs misc |
 |
D9-11g | Alternative Fuel - Biofuel | Part 2h 2n signs misc |
 |
D9-12 | Recreational Vehicle Sanitary Station | Part 2h 2n signs misc |
 |
D9-13aP | HOSPITAL | Part 2h 2n signs misc |
 |
D9-13 | Emergency Medical Services | Part 2h 2n signs misc |
 |
D9-13cP | EMERGENCY MEDICAL CARE | Part 2h 2n signs misc |
 |
D9-13dP | TRAUMA CENTER | Part 2h 2n signs misc |
 |
D9-14 | POLICE | Part 2h 2n signs misc |
 |
D9-16 | Truck Parking | Part 2h 2n signs misc |
 |
D9-16aP | TRUCK EXTERNAL POWER | Part 2h 2n signs misc |
 |
D9-16b | Truck Parking Availability - Exit Number | Part 2h 2n signs misc |
 |
D9-16c | Truck Parking Availability - Distance | Part 2h 2n signs misc |
 |
D9-16d | Truck Parking Availability - Rest Area | Part 2h 2n signs misc |
 |
D9-16e | Truck Parking Availability - Combined | Part 2h 2n signs misc |
 |
D9-17a | Next EV Charging | Part 2h 2n signs misc |
 |
D9-17P | Next Services Advance | Part 2h 2n signs misc |
 |
D9-18a | General Services with Exit Number | Part 2h 2n signs misc |
 |

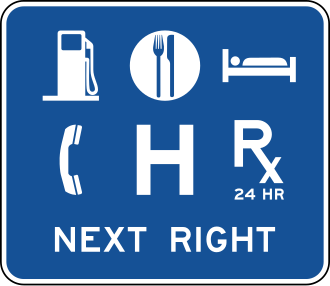

D9-18b | General Services (up to 6 symbols) with Action Message | Part 2h 2n signs misc |
 |
D9-18c | General Services with Action Message | Part 2h 2n signs misc |
 |
D9-18dP | Rural Interchange General Services (up to 3 symbols) (plaque) | Part 2h 2n signs misc |
 |
D9-18eP | Rural Interchange General Services (1 line) (plaque) | Part 2h 2n signs misc |
 |
D9-18fP | Rural Interchange General Services (2 line) (plaque) | Part 2h 2n signs misc |
 |
D9-19 | Alternative Fuels Corridor Sign | Part 2h 2n signs misc |
 |
D9-19aP | Alternative Fuels Corridor (1 line) (plaque) | Part 2h 2n signs misc |
 |
D9-19bP | Alternative Fuels Corridor (2 lines) (plaque) | Part 2h 2n signs misc |
 |
D9-20 | Pharmacy | Part 2h 2n signs misc |
 |
D9-20aP | 24 HR | Part 2h 2n signs misc |
 |
D9-21 | TDD | Part 2h 2n signs misc |
 |
D9-22 | Wireless Internet | Part 2h 2n signs misc |
 |
D10-1 | Reference Location Signs | Part 2h 2n signs misc |
 |
D10-1a | Intermediate Reference Location Signs | Part 2h 2n signs misc |
 |
D10-2 | Reference Location Signs | Part 2h 2n signs misc |
 |

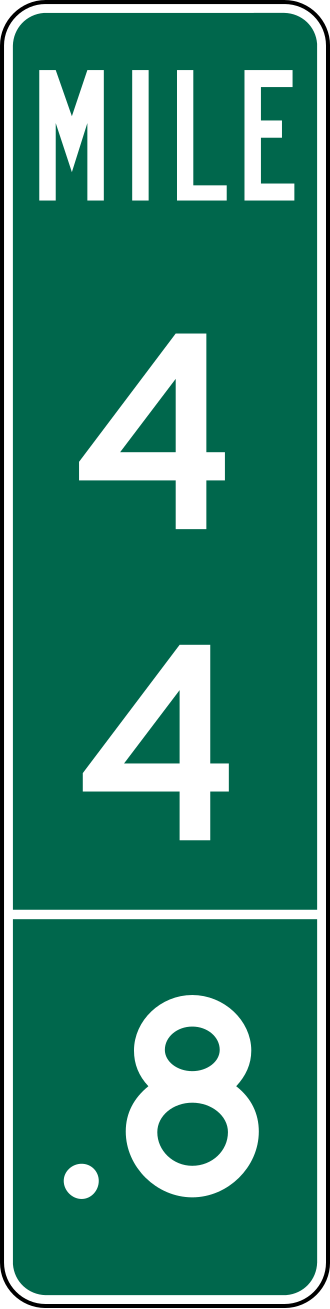

D10-2a | Intermediate Reference Location Signs | Part 2h 2n signs misc |
 |
D10-3 | Reference Location Signs | Part 2h 2n signs misc |
 |
D10-3a | Intermediate Reference Location Signs | Part 2h 2n signs misc |
 |
D10-4 | Enhanced Reference Location Signs | Part 2h 2n signs misc |
 |
D10-5 | Enhanced Reference Location Signs | Part 2h 2n signs misc |
| D10-7aT | Texas Reference Marker | Part 2h 2n signs misc | |
| D10-7bT | Texas Reference Marker | Part 2h 2n signs misc | |
 |
D11-1c | Alternative Bike Route Guide | Part 9d guide and service signs |
 |
D11-1bP | BIKE ROUTE Plaque | Part 9d guide and service signs |
 |
D11-1 | Bike Route Guide Signs | Part 9d guide and service signs |
 |
D11-10a | Shared-Use Path Destination (1 line) | Part 9d guide and service signs |
 |
D11-10b | Shared-Use Path Destination (2 lines) | Part 9d guide and service signs |
 |
D11-10c | Shared-Use Path Destination (3 lines) | Part 9d guide and service signs |
 |
D11-10d | Shared-Use Path Destination and Distance (1 line) | Part 9d guide and service signs |
 |
D11-10e | Shared-Use Path Destination and Distance (2 lines) | Part 9d guide and service signs |
 |
D11-10f | Share-Used Path Destination and Distance (3 lines) | Part 9d guide and service signs |
 |
D11-11 | Bicycle Directional | Part 9d guide and service signs |
 |
D11-12 | Mode-Specific Directional Guide Signs for Shared-Use Paths | Part 9d guide and service signs |
 |
D11-13 | Mode-Specific Directional Guide Signs for Shared-Use Paths | Part 9d guide and service signs |
 |
D11-14 | Mode-Specific Directional Guide Signs for Shared-Use Paths | Part 9d guide and service signs |
 |
D11-20 | Two-Stage Bicycle Turn Box Advance | Part 9d guide and service signs |
 |
D11-20a | Two-Stage Bicycle Turn Box | Part 9d guide and service signs |
 |
D12-1 | Radio-Weather Information | Part 2h 2n signs misc |
 |
D12-1a | Radio-Traffic Information | Part 2h 2n signs misc |
 |
D12-1bP | URGENT MESSAGE WHEN FLASHING | Part 2h 2n signs misc |
 |
D12-2 | Carpool and Ridesharing Signing | Part 2h 2n signs misc |
 |
D12-3 | Channel 9 Monitored | Part 2h 2n signs misc |
 |
D12-4 | EMERGENCY CALL 911 | Part 2h 2n signs misc |
 |
D12-5 | Travel Info Call 511 (pictograph) | Part 2h 2n signs misc |
 |
D12-5a | Travel Info Call 511 | Part 2h 2n signs misc |
 |
D12-6 | Roadside Assistance | Part 2h 2n signs misc |
 |
D13-1 | Crossover | Part 2d guide signs conventional |
 |
D13-1T | Turnaround Sign | Part 2d guide signs conventional |
 |
D13-2 | Advance Crossover | Part 2d guide signs conventional |
 |
D13-3 | FREEWAY ENTRANCE | Part 2d guide signs conventional |
 |
D13-3a | FREEWAY ENTRANCE | Part 2d guide signs conventional |
 |
D15-1 | Lane-Use/Destination Overhead Guide Sign | Part 2d guide signs conventional |
 |
D17-1T | Next Truck Lane | Part 2d guide signs conventional |
|
D17-2T | Advance Truck Lane | Part 2d guide signs conventional |
|
D17-3T | Next Passing Lane | Part 2d guide signs conventional |
|
D17-4T | Advance Passing Lane Advance | Part 2d guide signs conventional |
 |
D17-5 | Advance Emergency Turn-Out | Part 2d guide signs conventional |
 |
D17-6 | Emergency Turn-Out Directional | Part 2d guide signs conventional |
 |
D17-7 | Advance Slow Vehicle Turn-Out | Part 2d guide signs conventional |
| D20-1T | County Road (number) | Part 2d guide signs conventional | |
| D20-2T | County Road (number) | Part 2d guide signs conventional | |
| D20-3T | County Road (number) | Part 2d guide signs conventional | |
| D20-4T | County Road (number) | Part 2d guide signs conventional | |
| D21-1T | County Road (name) | Part 2d guide signs conventional | |
| D21-2T | County Road (name) | Part 2d guide signs conventional | |
| D21-3T | County Road (long name) | Part 2d guide signs conventional | |
| D71-BR | Texas Heritage Trail Signs | Part 2d guide signs conventional | |
| D71-PT | Texas Heritage Trail Directional Arrow (plaque) | Part 2d guide signs conventional |
Guide (G)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
G20-1T | ROAD WORK NEXT XX MILES | Part 6h ttc zone warning signs |
 |
G20-1 | Road Work Next XX Miles | Part 6h ttc zone warning signs |
| G20-1aT | Road Work Next X Miles (Rt. & Lt.) | Part 6h ttc zone warning signs | |
| G20-1bT | Road Work Next X Miles (Rt. or Lt.) | Part 6h ttc zone warning signs | |
 |
G20-2 | END ROAD WORK Sign | Part 6h ttc zone warning signs |
| G20-2bT | End Work Zone | Part 6g ttc zone regulatory signs | |
 |
G20-4 | PILOT CAR FOLLOW ME Sign | Part 6h ttc zone warning signs |
 |
G20-5aP | WORK ZONE | Part 2b regulatory signs |
|
G20-5T | Begin Road Work Next X Miles | Part 6h ttc zone warning signs |
|
G20-6T | CONTRACTOR Sign | Part 6h ttc zone warning signs |
|
G20-7T | Give Us a Brake | Part 6h ttc zone warning signs |
| G20-9PT | Begin Work Zone (plaque) | Part 6g ttc zone regulatory signs |
Guide/Recreational (M)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
M1-1 | Interstate Route (1 or 2 digits) | Part 2d guide signs conventional |
 |
M1-1a | Interstate Route (1 or 2 digits) | Part 2d guide signs conventional |
 |
M1-2 | Off-Interstate Route (1 or 2 digits) | Part 2d guide signs conventional |
 |
M1-3 | Off-Interstate Route (1 or 2 digits) | Part 2d guide signs conventional |
 |
M1-4 | U.S. Route (1 or 2 digits) | Part 2d guide signs conventional |
 |
M1-5 | State Route | Part 2f toll road signs |
|
M1-5T | State Route | Part 2d guide signs conventional |
|
M1-5F | Texas Farm Road Route | Part 2d guide signs conventional |
|
M1-5R | Texas Ranch Road Route | Part 2d guide signs conventional |
 |
M1-6 | County Route | Part 2a signs general |
 |
M1-7 | National Forest Route Marker | Part 2a signs general |
 |
M1-8 | Numbered Bicycle Route | Part 9d guide and service signs |
 |
M1-8a | Numbered Bicycle Route | Part 9d guide and service signs |
 |
M1-8b | Non-Numbered Bicycle Route Signs | Part 9d guide and service signs |
 |
M1-8c | Non-Numbered Bicycle Route Signs | Part 9d guide and service signs |
 |
M1-9 | U.S. Bicycle Route Sign | Part 9d guide and service signs |
 |
M1-10 | Eisenhower Interstate System Signs | Part 2e guide signs freeways |
 |
M1-10a | Eisenhower Interstate System Signs | Part 2e guide signs freeways |
 |
M2-1P | Junction Auxiliary Plaque | Part 2d guide signs conventional |
 |
M2-2 | Section 2D.14 Combination Junction Sign | Part 2d guide signs conventional |
 |
M3-1P | Cardinal Direction Auxiliary Plaques | Part 2d guide signs conventional |
 |
M3-2P | Cardinal Direction Auxiliary Plaques | Part 2d guide signs conventional |
 |
M3-3P | Cardinal Direction Auxiliary Plaques | Part 2d guide signs conventional |
 |
M3-4P | Cardinal Direction Auxiliary Plaques | Part 2d guide signs conventional |
 |
M4-1P | ALTERNATE | Part 2d guide signs conventional |
 |
M4-1aP | ALT | Part 2d guide signs conventional |
 |
M4-2P | BY-PASS Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-3P | BUSINESS Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-4P | TRUCK Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-5P | TO Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-6P | END Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-7P | TEMPORARY | Part 2d guide signs conventional |
 |
M4-7aP | TEMP | Part 2d guide signs conventional |
 |
M4-8P | DETOUR | Part 6i ttc zone guide signs |
 |
M4-8a | END DETOUR | Part 6i ttc zone guide signs |
 |
M4-8bP | END | Part 6i ttc zone guide signs |
 |
M4-9a | Bicyclist/ Pedestrian Detour | Part 6g ttc zone regulatory signs |
 |
M4-9b | Pedestrian Detour | Part 6g ttc zone regulatory signs |
 |
M4-9 | DETOUR | Part 6i ttc zone guide signs |
 |
M4-9c | Bicyclist Detour | Part 6i ttc zone guide signs |
 |
M4-10 | Detour Arrow | Part 6i ttc zone guide signs |
 |
M4-11 | Emergency Route | Part 2d guide signs conventional |
 |
M4-11a | Emergency Route | Part 2d guide signs conventional |
 |
M4-11bP | Emergency Route To (plaque) | Part 2d guide signs conventional |
 |
M4-11cP | Emergency Route To (plaque) | Part 2d guide signs conventional |
| M4-11PT | Temporary (plaque) | Part 6i ttc zone guide signs | |
 |
M4-12 | End Emergency Route | Part 2d guide signs conventional |
 |
M4-14P | BEGIN Auxiliary Plaque | Part 2d guide signs conventional |
 |
M4-17 | Toll Collector | Part 2f toll road signs |
 |
M4-18 | Exact Change | Part 2f toll road signs |
 |
M5-1P | Advance Turn Arrow Auxiliary Plaques | Part 2d guide signs conventional |
 |
M5-2P | Advance Turn Arrow Auxiliary Plaques | Part 2d guide signs conventional |
 |
M5-3P | Circular Intersection Advance Turn Arrow | Part 2d guide signs conventional |
| M5-3PT | Advance Turn Arrow (plaque) | Part 2d guide signs conventional | |
 |
M5-4P | Lane Designation Auxiliary Plaques | Part 2d guide signs conventional |
 |
M5-5P | Lane Designation Auxiliary Plaques | Part 2d guide signs conventional |
 |
M5-6P | Lane Designation Auxiliary Plaques | Part 2d guide signs conventional |
 |
M6-1P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-2P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-2aP | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-3P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-4P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-5P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-6P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M6-7P | Directional Arrow (plaque) | Part 2d guide signs conventional |
 |
M10-1 | National Scenic Byways | Part 2d guide signs conventional |
 |
M10-1aP | National Scenic Byways | Part 2d guide signs conventional |
 |
M10-2aP | Byway Identification | Part 2d guide signs conventional |
 |
M10-2 | Byway Identification | Part 2d guide signs conventional |
 |
M10-3bP | SCENIC BYWAY | Part 2d guide signs conventional |
 |
M10-3 | State Scenic Byway System | Part 2d guide signs conventional |
 |
M10-3a | State Scenic Byway | Part 2d guide signs conventional |
 |
M11-1 | National Historic Trail Identification | Part 2d guide signs conventional |
 |
M11-1aP | HISTORIC ROUTE | Part 2d guide signs conventional |
 |
M11-1dP | NEXT XX MILES | Part 2d guide signs conventional |
Object Marker (OM)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
OM3-L | Object Marker Type 3 | Part 9c warning signs and object markers |
 |
OM3-C | Object Marker Type 3 | Part 9c warning signs and object markers |
 |
OM3-R | Object Marker Type 3 | Part 9c warning signs and object markers |
Regulatory (R)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
R1-1 | STOP Sign | Part 2b regulatory signs |
 |
R1-2 | YIELD Sign | Part 2b regulatory signs |
 |
R1-2aP | TO ONCOMING TRAFFIC | Part 2b regulatory signs |
 |
R1-2bP | TO TRAFFIC IN CIRCLE | Part 2b regulatory signs |
 |
R1-2cP | TO ALL LANES | Part 2b regulatory signs |
 |
R1-3P | ALL-WAY Plaque | Part 2b regulatory signs |
 |
R1-5b | Stop Here for Pedestrians | Part 3b pavement and curb markings |
 |
R1-5e | Stop Here for Trail Crossing | Part 3b pavement and curb markings |
 |
R1-6a | In-Street Pedestrian Crossing | Part 2b regulatory signs |
 |
R1-6e | In-Street Trail Crossing | Part 2b regulatory signs |
 |
R1-7 | WAIT ON STOP | Part 6l other ttc zone traffic control devices |
 |
R1-7a | WAIT ON STOP/ GO ON SLOW | Part 6l other ttc zone traffic control devices |
 |
R1-8 | GO ON SLOW | Part 6l other ttc zone traffic control devices |
 |
R1-9a | Overhead Pedestrian Crossing | Part 2b regulatory signs |
 |
R1-9e | Overhead Trail Crossing | Part 2b regulatory signs |
 |
R1-10P | EXCEPT RIGHT TURN | Part 2b regulatory signs |
 |
R2-1 | Speed Limit Sign | Part 2b regulatory signs |
 |
R2-3P | Night Speed Limit Plaque | Part 2b regulatory signs |
 |
R2-4P | Minimum Speed Limit Plaque | Part 2b regulatory signs |
 |
R2-4a | Maximum and Minimum Speed Limits Sign | Part 2b regulatory signs |
 |
R2-5aP | CITYWIDE | Part 2b regulatory signs |
 |
R2-5bP | NEIGHBORHOOD | Part 2b regulatory signs |
 |
R2-5cP | RESIDENTIAL | Part 2b regulatory signs |
 |
R2-5P | UNLESS OTHERWISE POSTED | Part 2b regulatory signs |
 |
R2-6P | Higher Fines Signs and Plaque | Part 2b regulatory signs |
 |
R2-10 | Higher Fines Signs and Plaque | Part 2b regulatory signs |
 |
R2-11 | Higher Fines Signs and Plaque | Part 2b regulatory signs |
 |
R2-13 | END VARIABLE SPEED LIMIT | Part 2b regulatory signs |
 |
R3-1 | No Right Turn | Part 2b regulatory signs |
 |
R3-1b | Movement Prohibition - Trucks | Part 2b regulatory signs |
 |
R3-1c | Movement Prohibition - Trucks Buses | Part 2b regulatory signs |
 |
R3-1d | Movement Prohibition - Trucks Over X Lbs | Part 2b regulatory signs |
 |
R3-1e | Movement Prohibition - Except Buses | Part 2b regulatory signs |
 |
R3-1f | Movement Prohibition - Except Buses Taxis | Part 2b regulatory signs |
 |
R3-1g | Movement Prohibition - Time and Day | Part 2b regulatory signs |
 |
R3-1h | Movement Prohibition - Multiple Times and Day | Part 2b regulatory signs |
 |
R3-1a | No Right Turn - Train (symbol) | Part 8d flashing light signals automatic gates and traffic |
 |
R3-2 | No Left Turn | Part 2b regulatory signs |
 |
R3-2a | No Left Turn - Train (symbol) | Part 8d flashing light signals automatic gates and traffic |
 |
R3-3 | NO TURNS | Part 2b regulatory signs |
 |
R3-4 | No U-Turn | Part 2b regulatory signs |
 |
R3-5dP | TAXI LANE | Part 2b regulatory signs |
 |
R3-5gP | BUS LANE | Part 2b regulatory signs |
 |
R3-5a | Through Only | Part 2b regulatory signs |
 |
R3-5 | Mandatory Movement Lane Control | Part 9b regulatory signs |
 |
R3-5hP | BIKE LANE | Part 9b regulatory signs |
 |
R3-5bP | Left Lane (plaque) | Part 2b regulatory signs |
 |
R3-5cP | HOV 2+ (plaque) | Part 2b regulatory signs |
| R3-5eP | Center Lane (plaque) | Part 2b regulatory signs | |
 |
R3-5fP | Right Lane (plaque) | Part 2b regulatory signs |
 |
R3-6 | Intersection Lane Control Signs | Part 2b regulatory signs |
 |
R3-6a | Optional Movement U and Left Turn | Part 2b regulatory signs |
 |
R3-6b | Optional Movement Left Turns | Part 2b regulatory signs |
 |
R3-7 | LEFT LANE MUST TURN LEFT | Part 2a signs general |
 |
R3-7aP | EXCEPT BUSES | Part 2b regulatory signs |
 |
R3-7bP | EXCEPT BICYCLES Regulatory Plaque | Part 9b regulatory signs |
 |
R3-8 | Intersection Lane Control Signs | Part 2b regulatory signs |
 |
R3-8a | Advance Intersection Lane Control | Part 2b regulatory signs |
 |
R3-8b | Advance Intersection Lane Control | Part 2b regulatory signs |
 |
R3-8xa | Advance Intersection Lane Control | Part 2b regulatory signs |
 |
R3-8xb | Advance Intersection Lane Control | Part 2b regulatory signs |
 |
R3-8xc | Advance Intersection Lane Control | Part 2b regulatory signs |
| R3-8uT | Turnaround Only | Part 2b regulatory signs | |
 |
R3-9cP | BEGIN | Part 2b regulatory signs |
 |
R3-9dP | END | Part 2b regulatory signs |
 |
R3-9f | CENTER LANE | Part 2b regulatory signs |
 |
R3-9i | More than one End Reverse Lane | Part 2b regulatory signs |
 |
R3-9a | Two-Way Left-Turn-Only Signs | Part 2b regulatory signs |
 |
R3-9b | Two-Way Left-Turn-Only Signs | Part 2b regulatory signs |
 |
R3-9e | Reversible Lane Control Signs | Part 2b regulatory signs |
 |
R3-9g | Reversible Lane Control Signs | Part 2b regulatory signs |
 |
R3-9h | Reversible Lane Control Signs | Part 2b regulatory signs |
 |
R3-10 | Vehicle Occupancy Definition | Part 2g preferential managed lane signs |
 |
R3-10a | ILEV | Part 2g preferential managed lane signs |
 |
R3-11a | Preferential Lane Operation | Part 2g preferential managed lane signs |
 |
R3-11hP | MOTORCYCLES ALLOWED | Part 2g preferential managed lane signs |
 |
R3-12d | Preferential Lane Ends | Part 2g preferential managed lane signs |
 |
R3-12c | Preferential Lane Ends | Part 2g preferential managed lane signs |
 |
R3-12a | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-12b | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-12g | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-12h | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-12 | Preferential Lane Ahead or Ends - High-Occupancy Vehicles (post- mounted) | Part 2g preferential managed lane signs |
 |
R3-12e | Preferential Lane Ahead or Ends - High-Occupancy Vehicles (post- mounted) | Part 2g preferential managed lane signs |
 |
R3-12f | Preferential Lane Ahead or Ends (post-mounted) | Part 2g preferential managed lane signs |
 |
R3-13 | Preferential Lane Vehicle Occupancy Definition (overhead) | Part 2g preferential managed lane signs |
 |
R3-13a | Preferential Lane Vehicle Occupancy Definition (overhead) | Part 2g preferential managed lane signs |
 |
R3-14 | HOV Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-14a | HOV Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-14b | HOV Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-14c | Preferential Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-15a | Preferential Lane Advance | Part 2g preferential managed lane signs |
 |
R3-15c | Preferential Lane Ends | Part 2g preferential managed lane signs |
 |
R3-15b | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-15e | Preferential Lane Ends Signs | Part 2g preferential managed lane signs |
 |
R3-15 | HOV Lane Ahead (overhead) | Part 2g preferential managed lane signs |
 |
R3-15d | Preferential Lane Ahead or Ends (overhead) | Part 2g preferential managed lane signs |
 |
R3-17 | BIKE LANE | Part 9b regulatory signs |
 |
R3-17aP | AHEAD | Part 9b regulatory signs |
 |
R3-17bP | ENDS | Part 9b regulatory signs |
 |
R3-18 | No U or Left Turn | Part 2b regulatory signs |
 |
R3-19 | LANE FOR LEFT TURN ONLY | Part 2b regulatory signs |
 |
R3-19a | LANE FOR U TURN ONLY | Part 2b regulatory signs |
 |
R3-19b | LANE FOR U AND LEFT TURNS ONLY | Part 2b regulatory signs |
 |
R3-20R | BEGIN RIGHT TURN LANE | Part 2g preferential managed lane signs |
 |
R3-20L | BEGIN LEFT TURN LANE | Part 2g preferential managed lane signs |
 |
R3-20 | Begin Right (Left) Turn Lane | Part 2b regulatory signs |
 |
R3-23 | ALL TURNS FROM RIGHT LANE | Part 2b regulatory signs |
 |
R3-23a | U TURN FROM RIGHT LANE | Part 2b regulatory signs |
 |
R3-24 | All Turns (U-Turn) Directional | Part 2b regulatory signs |
 |
R3-24b | All Turns (U-Turn) Directional | Part 2b regulatory signs |
 |
R3-24a | U-Turns and Left Turns Directional | Part 2b regulatory signs |
 |
R3-25 | All Turns (U-Turn) Directional | Part 2b regulatory signs |
 |
R3-25b | All Turns (U-Turn) Directional | Part 2b regulatory signs |
 |
R3-25a | U-Turns and Left Turns Directional | Part 2b regulatory signs |
 |
R3-26a | All Turns (U-Turn) Directional | Part 2b regulatory signs |
 |
R3-26 | U-Turns and Left Turns Directional | Part 2b regulatory signs |
 |
R3-27 | No Straight Through | Part 2b regulatory signs |
 |
R3-31 | ETC Account-Only | Part 2f toll road signs |
 |
R3-32P | NO CASH | Part 2f toll road signs |
 |
R3-33 | LANE MUST EXIT | Part 2c warning signs |
 |
R3-33T | LANE MUST EXIT Signs | Part 2b regulatory signs |
| R3-33aT | Left Lane Must Enter Ramp | Part 2b regulatory signs | |
| R3-33bT | Left Lane Must Enter FRWY | Part 2b regulatory signs | |
| R3-33cT | All Traffic Must Exit | Part 2b regulatory signs | |
 |
R3-40T | Priced Managed Lane Vehicle Occupancy Definition (post-mounted) | Part 2g preferential managed lane signs |
 |
R3-42 | Priced Managed Lane Ends (post-mounted) | Part 2g preferential managed lane signs |
 |
R3-42a | Priced Managed Lane Ends Advance (post-mounted) | Part 2g preferential managed lane signs |
 |
R3-42b | Priced Managed Lane Restriction Ends (post-mounted) | Part 2g preferential managed lane signs |
 |
R3-42c | Priced Managed Lane Restriction Ends Advance (post-mounted) | Part 2g preferential managed lane signs |
|
R3-43T | Priced Managed Lane Vehicle Occupancy Definition | Part 2g preferential managed lane signs |
 |
R3-44 | Priced Managed Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-44a | Priced Managed Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-44b | Priced Managed Lane Operation (overhead) | Part 2g preferential managed lane signs |
 |
R3-45 | Priced Managed Lane Ends (overhead) | Part 2g preferential managed lane signs |
 |
R3-45a | Priced Managed Lane Restriction Ends (overhead) | Part 2g preferential managed lane signs |
 |
R3-48a | G-18 On the Priced Managed Lane Toll Rate | appendices |
|
R3-48T | Priced Managed Lane Toll Rate | Part 2g preferential managed lane signs |
| R3-48aT | Priced Managed Lane Toll Rate | Part 2g preferential managed lane signs | |
|
R3-50T | Priced Managed Lane Toll Rate | Part 2g preferential managed lane signs |
| R3-50aT | Priced Managed Lane Toll Rate | Part 2g preferential managed lane signs | |
 |
R3-51 | Part-Time Travel on Shoulder Operation | Part 2g preferential managed lane signs |
 |
R3-51d | Time Travel on Shoulder Variable Operation | Part 2g preferential managed lane signs |
 |
R3-51cP | EMERGENCY STOPPING ONLY OTHER TIMES | Part 2g preferential managed lane signs |
 |
R3-51e | Part-Time Travel on Shoulder on Green Arrow | Part 2g preferential managed lane signs |
 |
R3-51aP | No Trucks (plaque) | Part 2g preferential managed lane signs |
 |
R3-51bP | No Trucks or Buses (plaque) | Part 2g preferential managed lane signs |
 |
R3-52c | Part-Time Travel on Shoulder Begins Advance | Part 2g preferential managed lane signs |
 |
R3-52a | Part-Time Travel on Shoulder Ends Advance | Part 2g preferential managed lane signs |
 |
R3-52 | Part-Time Travel on Shoulder Ends | Part 2g preferential managed lane signs |
 |
R3-52b | Shoulder Must Exit Advance | Part 2g preferential managed lane signs |
 |
R3-56 | BEGIN EXIT LANE | Part 2g preferential managed lane signs |
 |
R3-57P | TO TRAFFIC ON SHOULDER | Part 2g preferential managed lane signs |
 |
R4-1 | DO NOT PASS Sign | Part 2b regulatory signs |
 |
R4-2 | PASS WITH CARE Sign | Part 2b regulatory signs |
| R4-2aT | Left Lane For Passing Only | Part 2b regulatory signs | |
 |
R4-3 | SLOWER TRAFFIC KEEP RIGHT Sign | Part 2b regulatory signs |
| R4-3bT | Do Not Cross Double White Line | Part 2b regulatory signs | |
 |
R4-4 | BEGIN RIGHT TURN LANE YIELD TO BIKES Sign | Part 9b regulatory signs |
| R4-5aT | No Trucks Left Lane | Part 2b regulatory signs | |
| R4-5bT | Begin No Trucks Left Lane | Part 2b regulatory signs | |
| R4-5cT | End No Trucks Left Lane | Part 2b regulatory signs | |
 |
R4-7 | Keep Right | Part 2b regulatory signs |
 |
R4-7b | Keep Right with diagonal arrow | Part 2b regulatory signs |
 |
R4-7c | Keep Right | Part 2b regulatory signs |
 |
R4-7a | Keep Right | Part 2b regulatory signs |
 |
R4-8 | Keep Left | Part 2b regulatory signs |
 |
R4-8a | Keep Left | Part 2b regulatory signs |
 |
R4-8b | Keep Left | Part 2b regulatory signs |
 |
R4-8c | Narrow Keep Left | Part 2b regulatory signs |
 |
R4-9 | STAY IN LANE Sign | Part 2b regulatory signs |
 |
R4-9a | STAY IN LANE TO MERGE POINT | Part 6g ttc zone regulatory signs |
 |
R4-10 | RUNAWAY VEHICLES ONLY Sign | Part 2b regulatory signs |
 |
R4-12 | Slow Vehicle Turn-Out Sign | Part 2b regulatory signs |
 |
R4-13 | SLOW VEHICLES MUST USE TURNOUT AHEAD | Part 2b regulatory signs |
 |
R4-14 | Slow Vehicle Turn-Out Signs | Part 2b regulatory signs |
 |
R4-17 | DO NOT DRIVE ON SHOULDER Sign | Part 2b regulatory signs |
 |
R4-18 | DO NOT PASS ON SHOULDER Sign | Part 2b regulatory signs |
 |
R4-19 | Section 9B.15 Bicycle Passing Clearance Sign | Part 9b regulatory signs |
 |
R4-20 | ALL TRAFFIC Sign | Part 2b regulatory signs |
 |
R4-21 | TURN ONLY Sign | Part 2b regulatory signs |
 |
R5-1 | DO NOT ENTER Sign | Part 2b regulatory signs |
 |
R5-1a | WRONG WAY Sign | Part 2b regulatory signs |
 |
R5-1b | Bicycle WRONG WAY | Part 9b regulatory signs |
| R5-1PT | Ramp (plaque) | Part 2b regulatory signs | |
 |
R5-2 | No Trucks | Part 2b regulatory signs |
 |
R5-2b | NO THRU TRUCKS | Part 2b regulatory signs |
 |
R5-2aP | EXCEPT LOCAL DELIVERY | Part 2b regulatory signs |
 |
R5-3 | NO MOTOR VEHICLES Sign | Part 9b regulatory signs |
 |
R5-4 | NO COMMERCIAL VEHICLES | Part 2b regulatory signs |
 |
R5-5 | NO VEHICLES WITH LUGS | Part 2b regulatory signs |
 |
R5-6 | No Bicycles | Part 2b regulatory signs |
 |
R5-7 | NO NON-MOTORIZED TRAFFIC | Part 2b regulatory signs |
 |
R5-8 | NO MOTOR-DRIVEN CYCLES | Part 2b regulatory signs |
 |
R5-10b | NO PEDESTRIANS OR BICYCLES | Part 2b regulatory signs |
 |
R5-10c | NO PEDESTRIANS | Part 2b regulatory signs |
 |
R5-10dP | ON FREEWAY | Part 9b regulatory signs |
 |
R5-10 | No Pedestrians, Bicycles, Motor-Driven Cycles | Part 2b regulatory signs |
 |
R5-10a | No Pedestrians, Bicycles, Motor-Driven Cycles On Freeway | Part 2b regulatory signs |
 |
R5-11T | FOR OFFICIAL OR EMERGENCY VEHICLE USE ONLY | Part 2b regulatory signs |
 |
R5-11 | AUTHORIZED VEHICLES ONLY | Part 2b regulatory signs |
 |
R5-12 | NO THRU TRAFFIC | Part 2b regulatory signs |
 |
R6-1 | ONE WAY Signs | Part 2b regulatory signs |
 |
R6-2 | ONE WAY Signs | Part 2b regulatory signs |
 |
R6-3 | Divided Highway Crossing Signs | Part 2b regulatory signs |
 |
R6-3a | Divided Highway Crossing Signs | Part 2b regulatory signs |
 |
R6-5P | Roundabout Circulation Plaque | Part 2b regulatory signs |
 |
R6-6 | Begin One Way | Part 2b regulatory signs |
 |
R6-7 | End One Way | Part 2b regulatory signs |
 |
R7-1 | Parking Prohibition | Part 2b regulatory signs |
 |
R7-2 | Parking Restrictions | Part 2b regulatory signs |
 |
R7-2a | Parking Restrictions | Part 2b regulatory signs |
 |
R7-3 | Parking Restrictions | Part 2b regulatory signs |
 |
R7-4 | Parking Restrictions | Part 2b regulatory signs |
 |
R7-4a | Parking Restrictions | Part 2b regulatory signs |
 |
R7-5 | Parking Restrictions | Part 2b regulatory signs |
 |
R7-6 | Parking Restrictions | Part 2b regulatory signs |
 |
R7-8T | Accessible Parking | Part 2b regulatory signs |
 |
R7-8aP | VAN ACCESSIBLE | Part 2b regulatory signs |
 |
R7-9 | No Parking Bike Lane Signs | Part 9b regulatory signs |
 |
R7-9a | No Parking Bike Lane Signs | Part 9b regulatory signs |
 |
R7-10 | Back-In Parking Sign | Part 9b regulatory signs |
 |
R7-11T | Parking Restrictions | Part 2b regulatory signs |
 |
R7-20 | Multi-Space Parking Meter | Part 2b regulatory signs |
 |
R7-21aP | Mobile Parking Payment | Part 2b regulatory signs |
 |
R7-21 | Metered Parking | Part 2b regulatory signs |
 |
R7-22 | Metered Parking | Part 2b regulatory signs |
 |
R7-108 | Permissive Parking | Part 2b regulatory signs |
 |
R7-202P | THIS SIDE OF SIGN | Part 2b regulatory signs |
 |
R7-203 | Snow Emergency Route | Part 2b regulatory signs |
 |
R8-1 | NO PARKING ON PAVEMENT | Part 2b regulatory signs |
 |
R8-2 | NO PARKING EXCEPT ON SHOULDER | Part 2b regulatory signs |
 |
R8-3c | ON PAVEMENT | Part 2b regulatory signs |
 |
R8-3d | ON BRIDGE | Part 2b regulatory signs |
 |
R8-3e | ON TRACKS | Part 2b regulatory signs |
 |
R8-3f | EXCEPT ON SHOULDERS | Part 2b regulatory signs |
 |
R8-3 | No Parking | Part 2c warning signs |
 |
R8-3a | No Parking | Part 2b regulatory signs |
| R8-3aT | No Parking (arrow) | Part 2b regulatory signs | |
| R8-3kT | No Truck Parking | Part 2b regulatory signs | |
 |
R8-4 | EMERGENCY PARKING ONLY | Part 2b regulatory signs |
 |
R8-5 | NO STOPPING ON PAVEMENT | Part 2b regulatory signs |
 |
R8-6 | NO STOPPING EXCEPT ON SHOULDER | Part 2b regulatory signs |
 |
R8-7 | EMERGENCY STOPPING ONLY | Part 2b regulatory signs |
 |
R8-8 | DO NOT STOP ON TRACKS Sign | Part 8b signs |
 |
R8-9 | TRACKS OUT OF SERVICE Sign | Part 8b signs |
 |
R8-10 | STOP HERE WHEN FLASHING Signs | Part 8b signs |
 |
R8-10a | STOP HERE WHEN FLASHING Signs | Part 8b signs |
 |
R9-1 | WALK ON LEFT FACING TRAFFIC | Part 2b regulatory signs |
 |
R9-2 | CROSS ONLY AT CROSSWALKS | Part 2b regulatory signs |
 |
R9-3 | No Pedestrian Crossing | Part 2b regulatory signs |
 |
R9-3a | NO PEDESTRIAN CROSSING | Part 2b regulatory signs |
 |
R9-3bP | USE CROSSWALK | Part 2b regulatory signs |
 |
R9-3cP | RIDE WITH TRAFFIC | Part 9b regulatory signs |
 |
R9-4 | No Hitchhiking | Part 2b regulatory signs |
 |
R9-4a | No Hitchhiking Word Message | Part 2b regulatory signs |
 |
R9-5 | Bicycles Use Ped Signal | Part 9b regulatory signs |
 |
R9-6 | Bicycles Yield to Pedestrians | Part 3b pavement and curb markings |
 |
R9-7 | Shared-Use Path Restriction Sign | Part 9b regulatory signs |
 |
R9-8 | PEDESTRIAN CROSSWALK Sign | Part 6g ttc zone regulatory signs |
 |
R9-9 | SIDEWALK CLOSED | Part 6g ttc zone regulatory signs |
 |
R9-10 | USE OTHER SIDE | Part 6g ttc zone regulatory signs |
 |
R9-11 | CROSS HERE | Part 6g ttc zone regulatory signs |
 |
R9-11a | CROSS HERE | Part 6g ttc zone regulatory signs |
 |
R9-12 | Bike Lane Closed | Part 6g ttc zone regulatory signs |
 |
R9-13 | No Skaters | Part 2b regulatory signs |
 |
R9-14 | No Equestrians | Part 2b regulatory signs |
 |
R9-15 | No Snowmobiles | Part 2b regulatory signs |
 |
R9-16 | No All-Terrain Vehicles | Part 2b regulatory signs |
 |
R9-19P | EXCEPT ON SHOULDER | Part 2b regulatory signs |
 |
R9-20 | Bicycles Allowed Use of Full Lane | Part 2c warning signs |
 |
R9-21 | Section 9B.16 Bicycles Use Shoulder Only Sign | Part 9b regulatory signs |
 |
R9-22 | Bicycles Must Exit | Part 9b regulatory signs |
 |
R9-23 | Bicycles All Turns from Bike Lane | Part 9b regulatory signs |
 |
R9-23a | Bicycle Left Turn from Bike Lane | Part 9b regulatory signs |
 |
R9-23b | Bicycle Turn Must Use Turn Box | Part 9b regulatory signs |
 |
R9-23c | Bicycle Turn Must Use Turn Box location | Part 9b regulatory signs |
 |
R9-24 | Bicycle All Turns | Part 9a general |
 |
R9-24a | Bicycle All Turns | Part 9a general |
 |
R9-25 | Bicycle U and Left Turns | Part 9a general |
 |
R9-25a | Bicycle U and Left Turns | Part 9a general |
 |
R9-25b | Bicycle U and Left Turns | Part 9a general |
 |
R9-26 | Bicycle U Turn | Part 9a general |
 |
R9-26a | Bicycle U Turn | Part 9a general |
 |
R9-26b | Bicycle U Turn | Part 9a general |
 |
R9-27 | Bicycle Left Turn | Part 9a general |
 |
R9-27a | Bicycle Left Turn | Part 9a general |
 |
R9-27b | Bicycle Left Turn | Part 9a general |
 |
R10-1 | Traffic Signal Pedestrian and Bicyclist Actuation Signs | Part 2b regulatory signs |
 |
R10-2 | SIGNAL | Part 2b regulatory signs |
 |
R10-3a | Push Button to Cross Street Wait for Walk Signal | Part 2b regulatory signs |
 |
R10-3 | Traffic Signal Pedestrian and Bicyclist Actuation Signs | Part 2b regulatory signs |
 |
R10-3b | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3c | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3d | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3e | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3f | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3g | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3h | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-3i | Pedestrian Signs | Part 2b regulatory signs |
 |
R10-4a | Push Button to Cross Street Wait for Green Signal | Part 2b regulatory signs |
 |
R10-4 | Traffic Signal Pedestrian and Bicyclist Actuation Signs | Part 2b regulatory signs |
 |
R10-5 | ON GREEN ARROW ONLY | Part 2b regulatory signs |
 |
R10-6 | STOP HERE ON RED | Part 4q traffic control for movable bridges |
 |
R10-6a | Stop Here on Red | Part 2b regulatory signs |
 |
R10-7 | DO NOT BLOCK INTERSECTION | Part 2b regulatory signs |
 |
R10-8 | WITH GREEN ARROW | Part 2b regulatory signs |
 |
R10-10 | TURN SIGNAL | Part 2b regulatory signs |
 |
R10-10a | U TURN SIGNAL | Part 2b regulatory signs |
 |
R10-10R | RIGHT TURN SIGNAL | Part 2b regulatory signs |
 |
R10-10b | LANE SIGNAL | Part 8d flashing light signals automatic gates and traffic |
 |
R10-10c | TURN LANE SIGNAL | Part 8d flashing light signals automatic gates and traffic |
 |
R10-11c | NO TURN ON RED EXCEPT FROM RIGHT LANE | Part 2b regulatory signs |
 |
R10-11a | NO TURN ON CIRCULAR RED | appendices |
 |
R10-11 | NO TURN ON RED | appendices |
 |
R10-11b | No Turn on Red | Part 2b regulatory signs |
 |
R10-11d | No Turn on Red From This Lane | Part 2b regulatory signs |
 |
R10-12b | Left Turn Yield to Bicycles Sign | Part 9b regulatory signs |
 |
R10-12 | Left Turn Yield on Green | Part 2b regulatory signs |
| R10-12aT | Left Turn Yield on Flashing Yellow Arrow | Part 2b regulatory signs | |
 |
R10-13 | FHWA Known Errors The EMERGENCY SIGNAL | Part 2b regulatory signs |
 |
R10-15a | Turning Vehicles Stop for Pedestrians | Part 2b regulatory signs |
 |
R10-16 | U TURN YIELD TO RIGHT TURN | Part 2b regulatory signs |
 |
R10-18 | Photo Enforced Signs and Plaques | Part 2b regulatory signs |
 |
R10-18a | Photo Enforced Signs and Plaques | Part 2b regulatory signs |
 |
R10-19P | Photo Enforced Signs and Plaques | Part 2b regulatory signs |
 |
R10-19aP | Photo Enforced Signs and Plaques | Part 2b regulatory signs |
 |
R10-20aP | MON—FRI (and times) (3 lines) (plaque) | Part 2b regulatory signs |
 |
R10-22 | Bicycle Detector | Part 9b regulatory signs |
 |
R10-23a | YIELD ON FLASHING RED AFTER STOP | Part 2b regulatory signs |
 |
R10-23 | Crosswalk - Stop on Red | Part 2b regulatory signs |
 |
R10-24 | Traffic Signal Pedestrian and Bicyclist Actuation Signs | Part 2b regulatory signs |
 |
R10-25 | PUSH BUTTON FOR WARNING LIGHTS | Part 4l rectangular rapid flashing beacons |
 |
R10-26 | Traffic Signal Pedestrian and Bicyclist Actuation Signs | Part 2b regulatory signs |
 |
R10-27 | LEFT TURN YIELD ON FLASHING RED ARROW AFTER STOP | Part 2b regulatory signs |
 |
R10-28 | PER GREEN | Part 2b regulatory signs |
 |
R10-29 | PER GREEN EACH LANE | Part 2b regulatory signs |
 |
R10-30 | RIGHT TURN ON RED MUST YIELD TO U-TURN | Part 2b regulatory signs |
 |
R10-31P | AT SIGNAL | Part 2b regulatory signs |
 |
R10-32P | BUTTON FOR 2 SECONDS FOR EXTRA CROSSING TIME | Part 4k accessible pedestrian signals and detectors |
 |
R10-40 | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-40a | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-40b | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-41 | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-41a | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-41b | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R10-41c | Bicycle Signal Signs | Part 9b regulatory signs |
 |
R11-1 | KEEP OFF MEDIAN Sign | Part 2b regulatory signs |
 |
R11-2 | ROAD CLOSED Sign | Part 2b regulatory signs |
 |
R11-2a | STREET CLOSED | Part 2b regulatory signs |
 |
R11-2c | PATH CLOSED | Part 6g ttc zone regulatory signs |
| R11-2bT | Road, Street, Bridge, Ramp Closed | Part 2b regulatory signs | |
| R11-2dT | Road, Street, Bridge, Ramp Closed | Part 2b regulatory signs | |
 |
R11-3 | LOCAL TRAFFIC ONLY | Part 2b regulatory signs |
 |
R11-3a | STREET CLOSED | Part 6g ttc zone regulatory signs |
 |
R11-3b | BRIDGE OUT | Part 6g ttc zone regulatory signs |
 |
R11-4 | ROAD CLOSED TO THRU TRAFFIC | Part 2b regulatory signs |
 |
R12-1 | Weight Limit Signs | Part 6g ttc zone regulatory signs |
 |
R12-1T | Weight Limit | Part 2b regulatory signs |
 |
R12-2 | WEIGHT LIMIT XX TONS | Part 6g ttc zone regulatory signs |
| R12-2cT | Weight Limit | Part 2b regulatory signs | |
|
R12-3T | Weight Limit | Part 2b regulatory signs |
| R12-4aT | Weight Limit | Part 2b regulatory signs | |
| R12-4bT | Weight Limit | Part 2b regulatory signs | |
 |
R12-5 | Weight Limit Signs | Part 6g ttc zone regulatory signs |
|
R12-7T | Emergency Vehicle Weight Limit | Part 2b regulatory signs |
| R12-7PT | Emergency Vehicle Weight Limit (plaque) | Part 2b regulatory signs | |
| R12-8aT | Weight Limit | Part 2b regulatory signs | |
| R12-8bT | Weight Limit | Part 2b regulatory signs | |
| R12-8cT | Weight Limit | Part 2b regulatory signs | |
| R12-9T | Width Limit | Part 2b regulatory signs | |
| R12-9aT | Width Limit | Part 2b regulatory signs | |
|
R13-1T | Regulatory sign | Part 2d guide signs conventional |
| R13-1aT | All Trucks Must Stop Ahead | Part 2b regulatory signs | |
| R13-1bT | Trucks-Buses Must Stop Ahead | Part 2b regulatory signs | |
| R13-1cT | All Trucks Next Right When Flashing | Part 2b regulatory signs | |
| R13-1PT | All Trucks Next Right (plaque) | Part 2b regulatory signs | |
 |
R13-2T | Regulatory sign | Part 2d guide signs conventional |
|
R13-3T | Low Beams | Part 2b regulatory signs |
 |
R14-1 | TRUCK ROUTE Sign | Part 2b regulatory signs |
 |
R14-2 | Hazardous Material Route | Part 2b regulatory signs |
 |
R14-3 | No Hazardous Material | Part 2b regulatory signs |
 |
R14-4 | National Network Signs | Part 2b regulatory signs |
 |
R14-5 | National Network Signs | Part 2b regulatory signs |
|
R14-6T | HAZARDOUS MATERIALS MUST FOLLOW Sign | Part 2b regulatory signs |
 |
R15-1 | Grade Crossing | Part 2a signs general |
 |
R15-2P | Number of Tracks Plaque | Part 8b signs |
 |
R15-3P | EXEMPT | Part 8b signs |
 |
R15-4a | Light Rail Only Right Lane | Part 8b signs |
 |
R15-4b | Light Rail Only Left Lane | Part 8b signs |
 |
R15-4c | Light Rail Only Center Lane | Part 8b signs |
 |
R15-5 | Do Not Pass Light Rail Transit | Part 8b signs |
 |
R15-5a | DO NOT PASS STOPPED TRAIN | Part 8b signs |
 |
R15-6 | No Motor Vehicles On Tracks | Part 8b signs |
 |
R15-6a | DO NOT DRIVE ON TRACKS | Part 8b signs |
 |
R15-8 | LOOK Sign | Part 9b regulatory signs |
 |
R16-3 | R16-4T R19-6aT Move Over or Reduce Speed Sign | Part 2b regulatory signs |
 |
R16-4T | Section 2B.70 Move Vehicles off Freeway Sign | Part 2b regulatory signs |
|
R16-15T | Prohibited Electronic Messaging While Driving | Part 2b regulatory signs |
|
R19-5T | NO DUMPING ALLOWED | Part 2b regulatory signs |
|
R19-6T | FINE | Part 2b regulatory signs |
| R19-6aT | Don't Mess With Texas | Part 2b regulatory signs | |
|
R19-7T | NO FISHING FROM BRIDGE | Part 2b regulatory signs |
|
R19-8T | Seat Belt Symbol and Sign | Part 2b regulatory signs |
| R20-1PT | Next X Miles (plaque) | Part 2b regulatory signs | |
 |
R20-3T | STATE LAW OBEY WARNING SIGNS Sign | Part 6g ttc zone regulatory signs |
| R20-4PT | X Miles Ahead (plaque) | Part 2b regulatory signs | |
|
R20-5T | TRAFFIC FINES DOUBLE sign | Part 6g ttc zone regulatory signs |
 |
R22-2 | TURN OFF 2-WAY RADIO AND CELL PHONE Sign | Part 6g ttc zone regulatory signs |
School (S)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
S1-1 | School | Part 2a signs general |
 |
S3-1 | School Bus Stop Ahead | Part 7b signs |
 |
S3-2 | SCHOOL BUS TURN AHEAD | Part 7b signs |
 |
S4-1P | Time of Day X:XX to X:XX AM X:XX to X:XX PM | Part 7b signs |
 |
S4-2P | Children Are Present | Part 7b signs |
 |
S4-3P | SCHOOL | Part 7b signs |
 |
S4-4P | WHEN FLASHING | Part 7b signs |
 |
S4-5 | Reduced School Speed Limit Ahead | Part 7b signs |
 |
S4-5a | Reduced School Speed Limit Ahead | Part 7b signs |
 |
S4-6P | Days of Week Mon-Fri | Part 7b signs |
 |
S4-7P | ALL YEAR | Part 7b signs |
 |
S5-1 | School Speed Limit | Part 7b signs |
 |
S5-2 | END SCHOOL ZONE | Part 7b signs |
 |
S5-3 | END SCHOOL SPEED LIMIT | Part 7b signs |
|
S6-1T | School Speed Limit XX When Flashing | Part 7b signs |
|
S7-1T | Cell Phone Use Prohibited | Part 7b signs |
|
S7-2T | SCHOOL SPEED LIMIT WHEN FLASHING | Part 7b signs |
|
S19-1T | STOP FOR SCHOOL BUS LOADING OR UNLOADING | Part 7b signs |
Warning (W)¶
| Sign | Code | Sign / plaque | Defined in |
|---|---|---|---|
 |
W1-1 | Turn | Part 2c warning signs |
 |
W1-2 | Curve | Part 2c warning signs |
 |
W1-3 | Reverse Turn | Part 2c warning signs |
 |
W1-4 | Reverse Curve | Part 2c warning signs |
 |
W1-5 | Winding Road | Part 2c warning signs |
 |
W1-6 | One-Direction Large Arrow Sign | Part 2c warning signs |
 |
W1-7 | Two-Direction Large Arrow Sign | Part 2c warning signs |
 |
W1-8 | Chevron Alignment Sign | Part 2c warning signs |
 |
W1-10 | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-10a | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-10b | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-10c | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-10d | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-10e | Combination Horizontal Alignment/Intersection | Part 2c warning signs |
 |
W1-11 | Hairpin Curve | Part 2c warning signs |
 |
W1-11T | CURVE BLOCKS VIEW | Part 2c warning signs |
| W1-11PT | Curve Blocks View (plaque) | Part 2c warning signs | |
 |
W1-13 | Truck Rollover Sign | Part 2c warning signs |
 |
W1-15 | Loop | Part 2c warning signs |
 |
W2-1 | Cross Road | Part 2c warning signs |
 |
W2-2 | Intersection Warning Signs | Part 2c warning signs |
 |
W2-3 | Intersection Warning Signs | Part 2c warning signs |
 |
W2-3a | Intersection Warning | Part 2c warning signs |
 |
W2-4 | T-Intersection | Part 2c warning signs |
 |
W2-5 | Y-Intersection | Part 2c warning signs |
 |
W2-6 | Circular Intersection | Part 2c warning signs |
 |
W2-7 | Offset Side Roads | Part 2c warning signs |
 |
W2-8 | Double Side Roads | Part 2c warning signs |
 |
W2-10 | TRAFFIC ENTERING WHEN FLASHING | Part 2c warning signs |
 |
W2-11 | TRAFFIC APPROACHING WHEN FLASHING | Part 2c warning signs |
 |
W3-1 | Stop Ahead | Part 2c warning signs |
 |
W3-2 | Yield Ahead | Part 2c warning signs |
 |
W3-3 | Signal Ahead | Part 2c warning signs |
 |
W3-4 | BE PREPARED TO STOP | Part 2c warning signs |
 |
W3-5b | VARIABLE SPEED ZONE AHEAD | Part 2c warning signs |
 |
W3-5 | Reduced Speed Limit Ahead and Speed Zone Signs | Part 2c warning signs |
 |
W3-5a | Reduced Speed Limit Ahead and Speed Zone Signs | Part 2c warning signs |
 |
W3-6 | DRAW BRIDGE Sign | Part 2c warning signs |
 |
W3-7 | RAMP METER AHEAD | Part 2c warning signs |
 |
W3-8 | RAMP METERED WHEN FLASHING | Part 2c warning signs |
 |
W3-9 | Traffic Using Shoulder | Part 2g preferential managed lane signs |
 |
W4-1 | Merge | Part 2c warning signs |
| W4-1aT | Thru Traffic Merge Right | Part 2c warning signs | |
 |
W4-2 | Lane Ends | Part 2c warning signs |
 |
W4-3 | Added Lane | Part 2c warning signs |
 |
W4-4aP | DOES NOT STOP | Part 2c warning signs |
 |
W4-4bP | ONCOMING TRAFFIC DOES NOT STOP | Part 2c warning signs |
 |
W4-4P | CROSS TRAFFIC DOES NOT STOP | Part 2c warning signs |
 |
W4-5aP | NO MERGE AREA | Part 2c warning signs |
 |
W4-5 | Entering Roadway Merge | Part 2c warning signs |
 |
W4-6 | Entering Roadway Added Lane | Part 2c warning signs |
 |
W4-7 | HEAVY MERGE FROM LEFT (RIGHT) Sign | Part 2c warning signs |
 |
W4-8 | Single-Lane Transition | Part 2c warning signs |
 |
W5-1 | ROAD NARROWS Sign | Part 2c warning signs |
 |
W5-2 | NARROW BRIDGE | Part 2c warning signs |
 |
W5-2a | NARROW UNDERPASS | Part 2c warning signs |
 |
W5-3 | ONE LANE BRIDGE | Part 2c warning signs |
 |
W5-3a | ONE LANE UNDERPASS | Part 2c warning signs |
 |
W5-4a | PATH NARROWS | Part 9c warning signs and object markers |
 |
W6-1 | Divided Highway Sign | Part 2c warning signs |
 |
W6-2 | Divided Highway Ends Sign | Part 2c warning signs |
 |
W6-3 | Two-Way Traffic Sign | Part 2c warning signs |
 |
W6-4 | Narrow Two-Way Traffic | Part 2c warning signs |
 |
W6-5 | Two-Way Traffic on a Three-Lane Roadway Signs | Part 2c warning signs |
 |
W6-5a | Two-Way Traffic on a Three-Lane Roadway Signs | Part 2c warning signs |
 |
W7-1 | Hill | Part 2c warning signs |
 |
W7-1a | Hill Signs | Part 2c warning signs |
 |
W7-2P | USE LOW GEAR | Part 2c warning signs |
 |
W7-2bP | TRUCKS USE LOWER GEAR | Part 2c warning signs |
 |
W7-3aP | NEXT XX MILES | Part 2c warning signs |
 |
W7-3P | Hill sign and supplemental grade | Part 2c warning signs |
 |
W7-3bP | XX% Grade, XX Miles (plaque) | Part 2c warning signs |
 |
W7-4dP | SAND | Part 2c warning signs |
 |
W7-4eP | GRAVEL | Part 2c warning signs |
 |
W7-4fP | PAVED | Part 2c warning signs |
 |
W7-4 | Runaway Truck Ramp XX Miles | Part 2c warning signs |
 |
W7-4b | Runaway Truck Ramp Entrance Direction | Part 2c warning signs |
 |
W7-4c | Truck Escape Ramp | Part 2c warning signs |
 |
W7-5 | Hill | Part 9c warning signs and object markers |
 |
W7-6 | HILL BLOCKS VIEW Sign | Part 2c warning signs |
| W7-6PT | Hill Blocks View (plaque) | Part 2c warning signs | |
 |
W8-1 | BUMP | Part 2c warning signs |
 |
W8-2 | DIP | Part 2c warning signs |
 |
W8-3 | PAVEMENT ENDS Sign | Part 2c warning signs |
 |
W8-4 | SOFT SHOULDER | Part 2c warning signs |
 |
W8-5 | Slippery When Wet | Part 2c warning signs |
 |
W8-5P | Road Condition (plaques) | Part 2c warning signs |
 |
W8-5bP | Road Condition (plaques) | Part 2c warning signs |
 |
W8-5cP | Road Condition (plaques) | Part 2c warning signs |
 |
W8-5aP | Ice (plaque) | Part 2c warning signs |
 |
W8-6 | TRUCK CROSSING | Part 2c warning signs |
 |
W8-7 | LOOSE GRAVEL | Part 2c warning signs |
| W8-7aT | Loose Sand | Part 2c warning signs | |
 |
W8-8 | ROUGH ROAD | Part 2c warning signs |
 |
W8-9 | LOW SHOULDER | Part 2c warning signs |
 |
W8-10 | Bicycle Surface Condition Warning Sign | Part 9c warning signs and object markers |
 |
W8-10P | Slippery When Wet (plaque) | Part 9c warning signs and object markers |
 |
W8-11 | UNEVEN LANES | Part 2c warning signs |
 |
W8-12 | NO CENTER LINE Sign | Part 2c warning signs |
| W8-13aT | Bridge May Ice in Cold Weather | Part 2c warning signs | |
 |
W8-14 | FALLEN ROCKS | Part 2c warning signs |
 |
W8-15 | GROOVED PAVEMENT | Part 2c warning signs |
 |
W8-15aP | Motorcycle | Part 2c warning signs |
|
W8-15P | Motorcycle Plaque | appendices |
 |
W8-16 | METAL BRIDGE DECK | Part 2c warning signs |
 |
W8-17 | Shoulder Drop Off | Part 2c warning signs |
 |
W8-17P | SHOULDER DROP-OFF | Part 2c warning signs |
 |
W8-18 | ROAD MAY FLOOD | Part 2c warning signs |
| W8-18aT | Water Crossing | Part 2c warning signs | |
| W8-18bT | Flooded Turn Around Don't Drown | Part 2c warning signs | |
 |
W8-19 | Depth Gauge | Part 2c warning signs |
 |
W8-21 | GUSTY WINDS AREA | Part 2c warning signs |
 |
W8-22 | FOG AREA | Part 2c warning signs |
 |
W8-23 | NO SHOULDER | Part 2c warning signs |
 |
W8-25 | SHOULDER ENDS | Part 2c warning signs |
 |
W8-26 | ROAD ENDS XX FT | Part 2c warning signs |
 |
W8-26a | STREET ENDS XX FT | Part 2c warning signs |
 |
W8-26T | ROAD ENDS | Part 2c warning signs |
 |
W9-1 | LEFT LANE ENDS | Part 2a signs general |
 |
W9-4 | LANES MERGE | Part 2c warning signs |
 |
W9-5 | Bicycle Lane Ends Warning Sign | Part 9c warning signs and object markers |
 |
W9-5a | Bicycles Merging Sign | Part 9c warning signs and object markers |
 |
W9-6 | Pay Toll | Part 2f toll road signs |
 |
W9-6e | Take Ticket | Part 2f toll road signs |
 |
W9-6dP | Pay Toll | Part 2f toll road signs |
 |
W9-6a | Stop Ahead Pay Toll | Part 2f toll road signs |
 |
W9-6f | Stop Ahead Take Ticket | Part 2f toll road signs |
 |
W9-6cP | Stop Ahead Pay Toll | Part 2f toll road signs |
 |
W9-6hP | Stop Ahead Take Ticket | Part 2f toll road signs |
 |
W9-7 | LANE FOR EXIT ONLY Sign | Part 2c warning signs |
 |
W10-1 | Grade Crossing Advance Warning | Part 2a signs general |
 |
W10-1aP | EXEMPT | Part 8b signs |
 |
W10-2 | Grade Crossing Advance Warning Signs | Part 8b signs |
 |
W10-3 | Grade Crossing Advance Warning Signs | Part 8b signs |
 |
W10-4 | Grade Crossing Advance Warning Signs | Part 8b signs |
 |
W10-5 | Low Ground Clearance Grade Crossing | Part 8b signs |
 |
W10-5P | LOW GROUND CLEARANCE | Part 8b signs |
 |
W10-6T | UNEVEN TRACKS Sign | Part 8b signs |
 |
W10-7 | Approaching-Activated Blank-Out Warning Sign | Part 8b signs |
 |
W10-8 | TRAINS MAY EXCEED 80 MPH Sign | Part 8b signs |
 |
W10-9 | NO TRAIN HORN | Part 8b signs |
 |
W10-9P | NO TRAIN HORN | Part 8b signs |
 |
W10-11 | Storage Space | Part 8b signs |
 |
W10-11a | Storage Space Ahead | Part 8b signs |
 |
W10-11b | Storage Space Behind | Part 8b signs |
 |
W10-12 | Skewed Crossing Sign | Part 8b signs |
 |
W10-13P | NO GATES OR LIGHTS Plaque | Part 8b signs |
 |
W10-14P | NEXT CROSSING | Part 8b signs |
 |
W10-14aP | USE NEXT CROSSING | Part 8b signs |
 |
W10-15P | ROUGH CROSSING Plaque | Part 8b signs |
 |
W10-16 | Section 8B.18 Another Train Coming Sign | Part 8b signs |
 |
W11-1 | Bicycle Warning | Part 9c warning signs and object markers |
 |
W11-2 | Pedestrian Crossing | Part 2c warning signs |
 |
W11-3 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-4 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-5 | Vehicular Traffic Warning Signs | Part 2c warning signs |
 |
W11-6 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-7 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-8 | Emergency Vehicle | Part 2c warning signs |
 |
W11-9 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-10 | Truck | Part 2c warning signs |
 |
W11-11 | Vehicular Traffic Warning Signs | Part 2c warning signs |
 |
W11-12P | EMERGENCY SIGNAL AHEAD | Part 2c warning signs |
 |
W11-12T | WATCH FOR EMERGENCY VEHICLES | Part 2c warning signs |
 |
W11-14 | Vehicular Traffic Warning Signs | Part 2c warning signs |
 |
W11-15 | Trail Crossing | Part 2c warning signs |
 |
W11-15P | TRAIL X-ING | Part 2c warning signs |
 |
W11-15a | TRAIL CROSSING | Part 2c warning signs |
 |
W11-16 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-17 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-18 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-19 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-20 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-21 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W11-22 | Non-Vehicular Warning Signs | Part 2c warning signs |
 |
W12-1 | Double Arrow Sign | Part 2c warning signs |
 |
W12-2 | Low Clearance Signs | Part 2c warning signs |
 |
W12-2a | Clearance Overhead | Part 2c warning signs |
 |
W12-2b | Clearance Overhead | Part 2c warning signs |
| W12-2PT | Low Clearance (plaque) | Part 2c warning signs | |
 |
W12-4T | LOW CLEARANCE X MILES AHEAD | Part 2c warning signs |
 |
W13-1P | Advisory Speed | Part 2c warning signs |
 |
W13-1aP | Confirmation Advisory Speed | Part 2c warning signs |
 |
W13-2 | Exit Speed | Part 2c warning signs |
 |
W13-3 | Ramp Speed | Part 2c warning signs |
 |
W13-4P | ON RAMP Plaque | Part 2c warning signs |
 |
W13-6 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Loop | Part 2c warning signs |
 |
W13-7 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Loop | Part 2c warning signs |
 |
W13-8 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Loop | Part 2c warning signs |
 |
W13-9 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Loop | Part 2c warning signs |
 |
W13-10 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Turn | Part 2c warning signs |
 |
W13-11 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed Turn | Part 2c warning signs |
 |
W13-12 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed - Truck Rollover | Part 2c warning signs |
 |
W13-13 | Combination Horizontal Alignment/Advisory Exit or Ramp Speed - Truck Rollover | Part 2c warning signs |
 |
W13-20 | Vehicle Speed Feedback | Part 2c warning signs |
 |
W13-20aP | Vehicle Speed Feedback | Part 2c warning signs |
 |
W14-1 | DEAD END | Part 2c warning signs |
 |
W14-1a | DEAD END | Part 2c warning signs |
 |
W14-2 | NO OUTLET | Part 2c warning signs |
 |
W14-2a | NO OUTLET | Part 2c warning signs |
 |
W14-3 | NO PASSING ZONE Sign | Part 2c warning signs |
 |
W15-1 | Playground Sign | Part 2c warning signs |
 |
W16-1P | IN ROAD | Part 2c warning signs |
 |
W16-1aP | IN STREET | Part 2c warning signs |
 |
W16-2P | XX Feet (2-line plaque) | Part 2c warning signs |
 |
W16-2aP | XX Ft (1-line plaque) | Part 2c warning signs |
 |
W16-3P | XX Miles (2-line plaque) | Part 2c warning signs |
 |
W16-3aP | XX Miles (1-line plaque) | Part 2c warning signs |
 |
W16-4P | NEXT XX FEET | Part 2c warning signs |
 |
W16-5P | Supplemental Arrow Plaques | Part 2c warning signs |
 |
W16-6P | Supplemental Arrow Plaques | Part 2c warning signs |
 |
W16-7P | Diagonal Downward-Pointing Arrow Plaques | Part 2c warning signs |
 |
W16-7aP | Diagonal Downward-Pointing Arrow Plaques | Part 2c warning signs |
 |
W16-8P | Advance Street Name Plaques | Part 2c warning signs |
 |
W16-8aP | Advance Street Name Plaques | Part 2c warning signs |
 |
W16-9P | AHEAD | Part 2c warning signs |
 |
W16-10P | Photo Enforced Plaques | Part 2c warning signs |
 |
W16-10aP | Photo Enforced Plaques | Part 2c warning signs |
 |
W16-11P | HOV | Part 2g preferential managed lane signs |
 |
W16-12P | TRAFFIC CIRCLE | Part 2c warning signs |
 |
W16-12aP | ROUNDABOUT | Part 2c warning signs |
 |
W16-13P | WHEN FLASHING | Part 2c warning signs |
 |
W16-15P | NEW Plaque | Part 2c warning signs |
 |
W16-16P | LAST EXIT BEFORE TOLL | Part 2e guide signs freeways |
 |
W16-17P | Section 2F.11 TOLL Warning Plaque | Part 2f toll road signs |
 |
W16-18P | Notice (plaque) | Part 2a signs general |
 |
W16-19P | LAST IN CORRIDOR | Part 2h 2n signs misc |
 |
W16-20P | EXCEPT BICYCLES Plaque | Part 2c warning signs |
 |
W16-21P | Two-Way Bicycle Cross Traffic Warning Plaque | Part 9c warning signs and object markers |
| W16-22PT | XX Miles (plaque) | Part 2b regulatory signs | |
| W16-23PT | Bridge (plaque) | Part 2b regulatory signs | |
 |
W17-1 | SPEED HUMP Sign | Part 2c warning signs |
 |
W17-11T | ROCK SLIDES | Part 2c warning signs |
|
W17-12T | EARTH SLIDES | Part 2c warning signs |
|
W17-14T | WATCH FOR SMOKE ON ROAD | Part 2c warning signs |
|
W17-15T | WATCH FOR MUD ON ROAD | Part 2c warning signs |
 |
W18-1 | NO TRAFFIC SIGNS Sign | Part 2c warning signs |
 |
W19-1 | FREEWAY ENDS XX MILES | Part 2c warning signs |
 |
W19-3 | FREEWAY ENDS | Part 2c warning signs |
 |
W19-5 | ALL TRAFFIC MUST EXIT | Part 2c warning signs |
 |
W20-8 | SLOW | Part 6l other ttc zone traffic control devices |
 |
W23-2 | NEW TRAFFIC PATTERN AHEAD | Part 2c warning signs |
 |
W23-2a | NEW SIGNAL OPERATION AHEAD | Part 2c warning signs |
 |
W25-1 | Traffic Signal Oncoming Extended Green Signs | Part 2c warning signs |
 |
W25-2 | Traffic Signal Oncoming Extended Green Signs | Part 2c warning signs |
 |
W26-1 | WATCH FOR STOPPED TRAFFIC Sign | Part 2c warning signs |
 |
W90-11T | TOLL panel | Part 2f toll road signs |
1079 sign codes indexed. Names are the official MUTCD sign designations; this unofficial mirror links each to its defining section.
